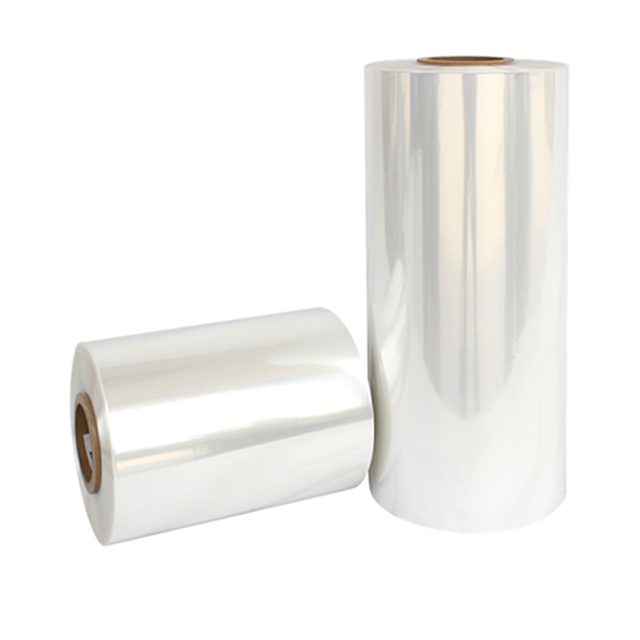

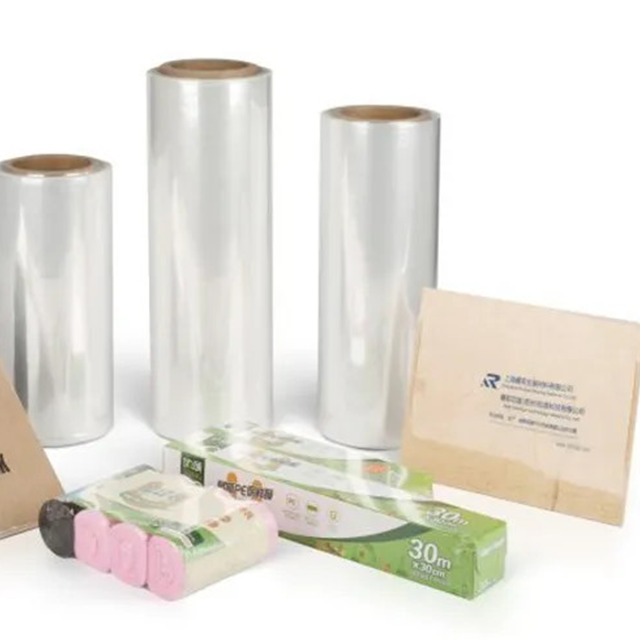

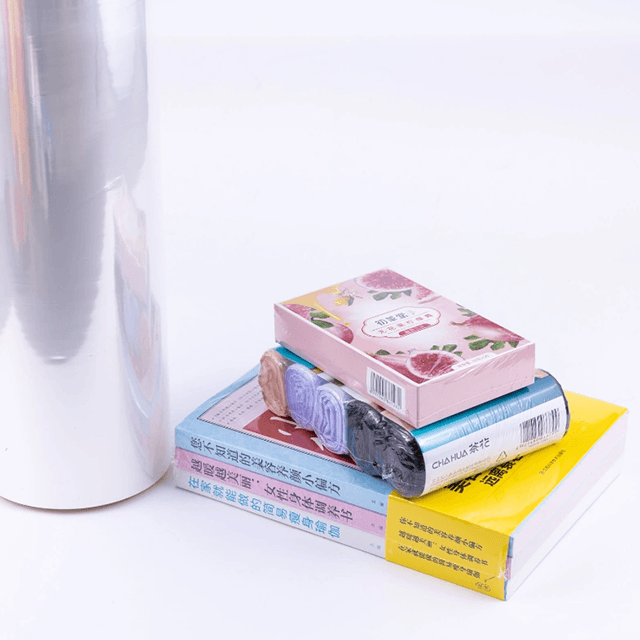

Hot slip shrink film is a specialized type of shrink film designed with an added slip agent that becomes active at elevated temperatures. This slip agent, often incorporated into the film formulation, reduces the coefficient of friction between layers of the film when it is heated. The result is improved slip characteristics, allowing the film to easily slide or slip over the packaged product during the shrinking process.
Key Features:
Enhanced Slip Properties
Reduced Friction
Ease of Application
Consistent Shrink Performance
TEST ITEM | UNIT | ASTM TEST | TYPICAL VALUES | |||||
THICKNESS | mic | 12 | 15 | 19 | 25 | 30 | ||
MD/TD | MD/TD | MD/TD | MD/TD | MD/TD | ||||
Tensile Strength | N/mm | D882 | 110/105 | 110/105 | 105/100 | 100/95 | 90/85 | |
Elongation | % | 110/105 | 115/110 | 115/110 | 120/115 | 115/115 | ||
Tear | g | D1992 | 11.0/9.5 | 14/12 | 16/15 | 23/22 | 24/25 | |
Seal Strength | N/mm | F88 | 0.68/0.7 | 0.8/0.83 | 1.05/1.0 | 1.25/1.3 | 1.4/1.50 | |
COF Dynamic(Film to Film) | D1894 | 0.19 | 0.17 | 0.16 | 0.19 | 0.18 | ||
Dynamic(hot slip)@60℃ | D1894 | 0.27 | 0.26 | 0.25 | 0.23 | 0.22 | ||
Haze | % | D1003 | 2.10 | 2.60 | 3.00 | 3.80 | 4.40 | |
Clarity | D1746 | 97.2 | 96.5 | 96.0 | 95.0 | 92.0 | ||
Gloss@45deg | D2457 | 85.0 | 84.0 | 83.5 | 82.5 | 80.0 | ||
Free Shrinkage | 110℃ | % | D2732 | 38/43 | 38/43 | 35/44 | 35/45 | |
120℃ | 57/60 | 57/61 | 56/60 | 54/58 | 53/56 | |||
130℃ | 64/65 | 64/64 | 63/64 | 62/63 | 60/61 | |||
Shrink Tension | 110℃ | Mpa | D2838 | 2.6/3.40 | 2.5/3.40 | 2.6/3.45 | 2.55/3.5 | 2.6/3.45 |
120℃ | 2.75/3.55 | 2.75/3.55 | 2.7/3.51 | 2.7/3.50 | 2.7/3.49 | |||
130℃ | 2.55/3.25 | 2.6/3.25 | 2.6/3.20 | 2.5/3.2 | 2.5/3.15 | |||
