What Size Is a Shrink Film?

Introduction

Shrink film is a widely used packaging material across industries—from food and beverage to electronics and retail. It's favored for its clarity, strength, and ability to conform tightly to products once heat is applied. But a critical factor in choosing the right shrink film for your packaging process is understanding the size. The wrong size can result in inefficient packaging, material waste, or even product damage. So, what size is a shrink film? This question doesn’t have a one-size-fits-all answer, as shrink film comes in a variety of widths, lengths, and thicknesses, each tailored to specific needs.

When businesses search for shrink film, they are often met with a flood of numbers—gauge, width, flat width, centerfold, pre-shrink, post-shrink dimensions, and so on. In this article, we'll break down these terms, provide clear explanations, and answer common FAQs, helping you make informed decisions for your packaging operations.

Shrink Film Dimensions: An Overview

Flat Width vs. Centerfold Shrink Film

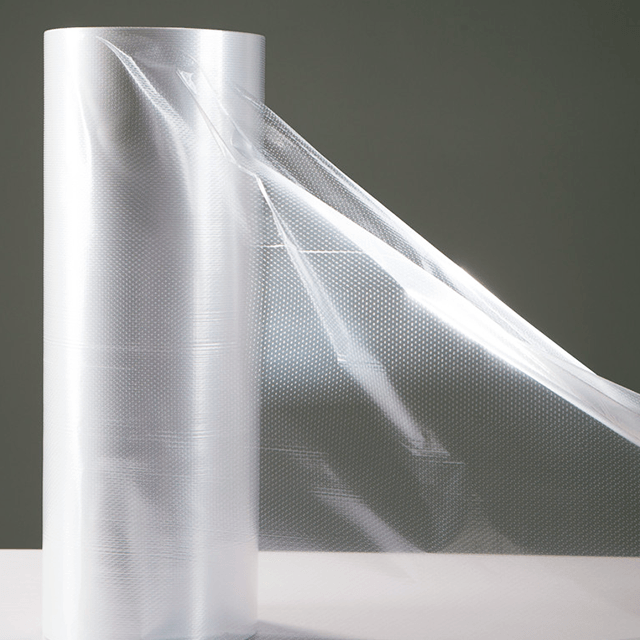

Shrink film is available primarily in flat rolls or centerfold rolls. Flat shrink film is just as it sounds—a single sheet wound flat on a roll. On the other hand, centerfold shrink film is folded lengthwise in half, with the open sides typically fed into a shrink sealer. When unfolded, the width doubles.

For example:

Understanding the difference between roll width and unfolded width is crucial, especially when estimating how much material is needed to wrap a particular product.

Shrink Film Thickness (Gauge or Micron)

Shrink film is measured by gauge (in the U.S.) or micron (in most other countries). The thickness you choose depends on the weight and durability needs of your product.

Thicker film offers more strength but is also more expensive and less flexible. Choosing the right thickness ensures product protection without overkill.

How to Determine the Right Shrink Film Size for Your Product

Measuring a Product for Shrink Film Wrapping

One of the most misunderstood aspects of shrink film is how to calculate the proper film width. If you’re using centerfold shrink film, you can use this general formula to determine the appropriate width:

Film Width = (Product Width + Product Height) + 2 inches

Let’s say you have a box that's 6 inches wide and 4 inches high:

• Film Width = (6 + 4) + 2 = 12 inches

• You’d choose a centerfold shrink film roll that is labeled 12 inches (which unfolds to 24").

For flat shrink film, you may use:

Film Width = Product Circumference ÷ 2 + 10% buffer

This is particularly useful for cylindrical or irregularly shaped items.

Common Shrink Film Sizes on the Market

Shrink film is available in a wide range of standard sizes, depending on the manufacturer and packaging requirements. Common roll widths include:

Roll lengths typically range from 1,500 to 5,000 feet, depending on the film thickness. The thinner the film, the longer the roll.

Choosing the Best Shrink Film Size Based on Application

Light, Medium, and Heavy-Duty Applications

Your product's weight and fragility should guide your choice of film size and thickness.

• Lightweight items (e.g., stationery, plastic utensils): Opt for 45-60 gauge, small width.

• Medium-weight items (e.g., books, toys): 60-75 gauge and medium-width rolls.

• Heavy-duty items (e.g., toolsets, industrial products): 100+ gauge with larger widths.

Always consider machine compatibility, sealing system (L-bar or I-bar), and the shrink rate of the film—some films shrink up to 40%, so initial sizing must take that into account.

FAQs on Shrink Film Sizing

Is the labeled width the total usable width?

For centerfold film, the labeled width is half the total unfolded width. So if it says 12", the film actually covers a 24" flat surface once unfolded.

Can shrink film stretch during application?

Shrink film does not stretch like stretch wrap; it shrinks when heat is applied. Therefore, the sizing must be generous enough to cover the product before shrinking occurs.

What happens if the shrink film is too large or too small?

• If the film is too small, it won’t seal properly, causing breakage.

• If it’s too large, you’ll get excessive wrinkles or wasted material.

Proper sizing ensures a tight, wrinkle-free seal and a professional appearance.

Summary Table: Shrink Film Sizing Guidelines

Here’s a quick-reference table summarizing how to choose shrink film size based on product type:

Conclusion: Getting the Perfect Fit

Choosing the right shrink film size may seem like a technical challenge, but understanding your product’s dimensions, weight, and wrapping needs simplifies the process. By focusing on accurate measurements and matching them to the correct film width and thickness, businesses can avoid costly errors and improve packaging efficiency.
